Connecting Parts
Connecting Parts Angle Ball Joints
Select from the images below a connecting part to view available types with dimensions
Other types on request, please contact us for more information or send us your drawing
- Material
- Steel, stainless steel and Zamak
- Made in
- Vernon, BC, Canada
- Quality system
- ISO 9001:2015
Part of Connecting Parts
Dimensions and part numbers
| Part # | d2 | d2¹ | a | L2 | Ball Ø d1 |
|---|---|---|---|---|---|
| A6 | M6 | M6 | 25MM/.98" | 12.5MM/.49" | 10MM |
| A6.3 | M6 | 5/16"-18UNC | 25MM/.98" | 16.5MM/.65" | 10MM |
| A6.5 | M6 | M8 | 25MM/.98" | 16.5MM/.65" | 10MM |
| A6.7 | M6 | 5/16"-18UNC | 20MM/.79" | 16.5MM/.65" | 10MM |
| A8 | M8 | M8 | 30MM/1.18" | 16.5MM/.65" | 13MM |
| A8.1 | M8 | 5/16"-18UNC | 20MM/.79" | 16.5MM/.65" | 10MM |
| A8.2 | M8 | 5/16"-18UNC | 25MM/.98" | 16.5MM/.65" | 10MM |
| A8IN | M8 | 5/16"-18UNC | 30MM/1.18" | 16.5MM/.65" | 13MM |
| A8.4 | M8 | M10 | 30MM/1.38" | 20MM/.79" | 13MM |
| A8.5 | M8 | M8 | 25MM/.98" | 25MM/.98" | 10MM |
| A8.6 | M8 | 5/16"-18UNC | 20MM/.79" | 25MM/.98" | 10MM |
| A8.7 | M8 | M8 | 20MM/.79" | 12.5MM/.49" | 10MM |
| A8.8 | M8 | 5/16"-18UNC | 20MM/.79" | 25MM/.98" | 10MM |
| A8.9 | M8 | M8 | 25MM/.98" | 16.5MM/.65" | 13MM |
| A8.10 | M8 | M8 | 20MM/.79" | 16.5MM/.65" | 13MM |
| A10 | M10 | M10 | 35MM/1.38" | 20MM/.79" | 16MM |
| A10.4 | M10 | M8 | 30MM/1.18" | 16.5MM/.65" | 13MM |
| A14 | MF14x1.5 | MF14x1.5 | 45MM/1.77" | 28MM/1.10" | 19MM |
| Part # | d2 | d2¹ | a | L2 | Ball Ø d1 |
|---|---|---|---|---|---|
| A6N | M6 | M6 | 25MM/.98" | 12.5MM/.49" | 10MM |
| A6.3N | M6 | 5/16"-18UNC | 25MM/.98" | 12.5MM/.49" | 10MM |
| A6.5N | M6 | M8 | 25MM/.98" | 12.5MM/.49" | 10MM |
| A8N | M8 | M8 | 30MM/1.18" | 16.5MM/.65" | 13MM |
| A8INN | M8 | 5/16"-18UNC | 30MM/1.18" | 16.5MM/.65" | 13MM |
| A8.1N | M8 | 5/16"-18UNC | 20MM/.79" | 12.5MM/.49" | 10MM |
| A8.7N | M8 | M8 | 20MM/.79" | 12.5MM/.49" | 10MM |
| A10N | M10 | M10 | 35MM/1.38" | 20MM/.79" | 16MM |
| A14N | MF14x1.5 | MF14x1.5 | 45MM/1.77" | 28MM/1.10" | 19MM |
| Part # | d2 | d2¹ | a | L2 | Ball Ø d1 |
|---|---|---|---|---|---|
| A8QR | M8 | M8 | 28MM/1.10" | 16.5MM/.65" | 10MM |

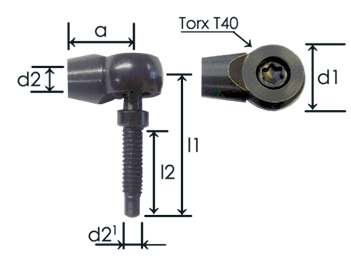

| Part # | d2 | d2¹ | a | L1 | L2 | d1 |
|---|---|---|---|---|---|---|
| A8T | M8 | M8 | 22MM/.87" | 40MM/1.57" | 26MM/1.02" | 21MM/.83" |
