Products - Connecting Parts
Select from the images below a connecting part to view available types with dimensions
In this range
8 types
Eye types
Eyelets are available in a variety of types and can be used with our bolt or pin brackets. Select the connecting part that matches with threaded end gas springs and configure your own combination.
Clevis types
Heavy duty connecting part with bolt pivoting in both directions over a plate that fits in between the clevis. Select the connecting part that matches with threaded end gas springs to configure your own combination.
Ball joint types
Ball joints rotate in any direction to overcome possible misalignment. Ball socket housing Ø10MM, Ø13MM or Ø16MM, ball studs metric or standard and are avialable in different thead lengths.
Ball socket types with clip
Nylon or Metal ball sockets have a clip that grips the ball stud for a fast and secure mounting of the Gas Spring.
Metal ball socket types with retaining pin
Ball sockets rotate in any direction to overcome possible misalignment. Ball Ø10MM, Ø13MM or Ø16MM and to be used with matching ball studs or ball brackets. Select the connecting part that matches with threaded end gas springs and configure your own combination.
Ball stud types
Ball studs can be mounted directly into a plate, door, wall, panel etc. and to be used with ball sockets and matching housing diameter Ø10MM, Ø13MM or Ø16MM.
Rod end bearing types
Rod end bearings with ball swivel are maintenance free and to be used with Gemini Gas Springs when swiveling in all directions is required to overcome misalignment.

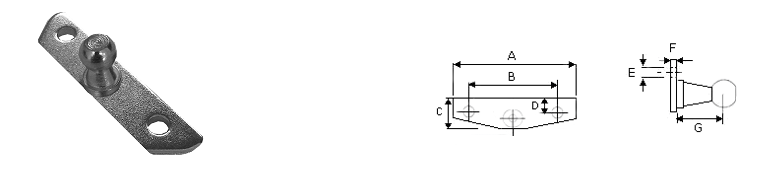

Brackets
Mounting brackets to be used with Gemini Gas Springs are great to use for mounting to doors, lids, covers and walls. Pre-drilled and availabale with ball Ø10, Ø13MM or pin Ø6MM or Ø8MM.

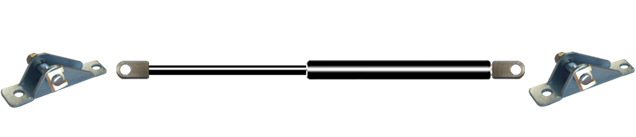

About Connecting Parts
Create your own assembly with our extensive range of connectings parts. Most if not all are interchangable so that you can easily and simply install our gas springs.
We offer you an extensive range of connecting parts suchs as:
Please be advised that length of gas spring will change depending on choice of end fiiting.
If you cannot find the right connecting part for your gas spring please contact us to discuss possibilities or send us your drawing.
Request a quote for Connecting Parts
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
