Connecting Parts

Connecting Parts Metal Mounting Brackets

Select from the images below a connecting part to view available types with dimensions

Other types on request, please contact us for more information or send us your drawing

Request a quote Configurator

Material: Steel, stainless steel and Zamak
Made in: Vernon, BC, Canada
Quality system: ISO 9001:2015

Part of Connecting Parts

Dimensions and part numbers

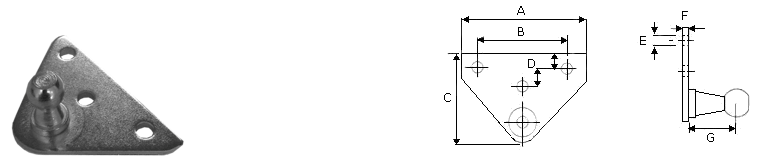

Connecting Parts Metal Mounting Brackets — Metal mounting brackets, steel zinc plated. Ball Ø10MM · Part # MB10A
Part #	A	B	C	D	E	F	G
MB10A	45MM/1.77"	30MM/1.18"	18MM/.71"	6.25MM/.25"	5.5MM/.22"	3MM/.12"	12MM/.50"

Metal mounting brackets, steel zinc plated. Ball Ø10MM part 1

Connecting Parts Metal Mounting Brackets — Part # MB10C
Part #	A	B	C	D	E	F	G
MB10C	57MM/2.25"	38MM/1.50"	38MM/1.50"	6MM/.24"	5MM/.20"	3MM/.12"	12MM/.50"

Connecting Parts Metal Mounting Brackets — Part # MB10K
Part #	A	B	C	D	E	F	G
MB10K	57MM/2.25"	38MM/1.50"	38MM/1.50"	6MM/.24"	5MM/.20"	3MM/.12"	12MM/.50"

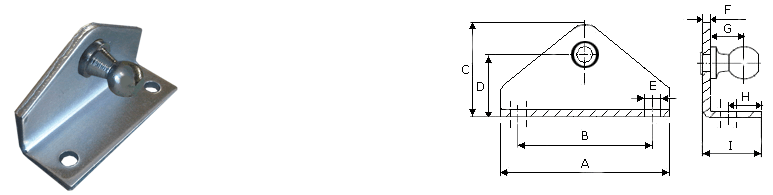

Metal mounting brackets, steel zinc plated. Ball Ø10MM part 2

Connecting Parts Metal Mounting Brackets — Part # MB10E
Part #	A	B	C	D	E	F	G	H	I
MB10E	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	5MM/.20"	3MM/.12"	13MM/.50"	6MM/.24"	20MM/.80"

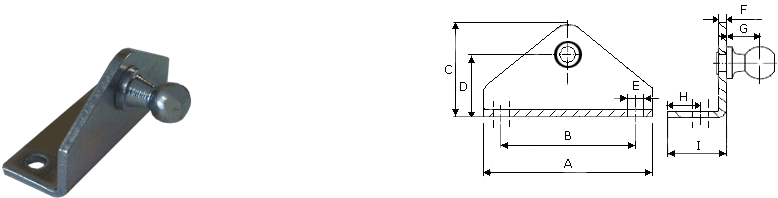

Metal mounting brackets, steel zinc plated. Ball Ø13MM part 4

Connecting Parts Metal Mounting Brackets — Part # MB10F
Part #	A	B	C	D	E	F	G	H	I
MB10F	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	5MM/.20"	3MM/.12"	13MM/.50"	6MM/.24"	20MM/.80"

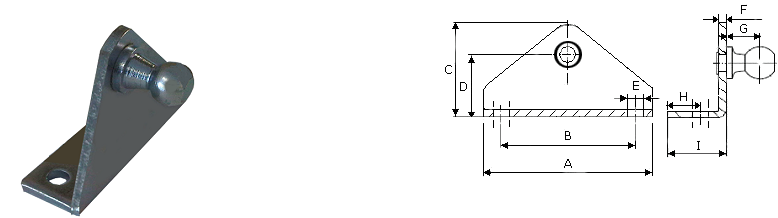

Connecting Parts Metal Mounting Brackets — Part # MB10G
Part #	A	B	C	D	E	F	G	H	I
MB10G	51MM/2.00"	38MM/1.50"	38MM/1.50"	25MM/1.00"	5MM/.20"	3MM/0.12"	13MM/.50"	8MM/.315"	31MM/1.22"

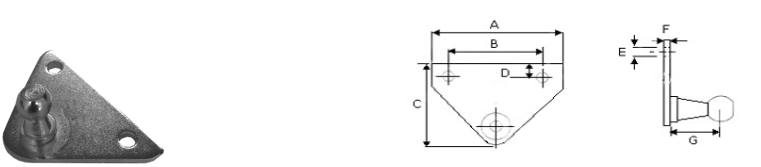

Connecting Parts Metal Mounting Brackets — Metal mounting brackets, steel zinc plated. Ball Ø13MM · Part # MB13C
Part #	A	B	C	D	E	F	G
MB13C	69MM/2.72"	55MM/2.17"	50MM/1.97"	7MM/.28"	5MM/.20"	3MM/.12"	9.5MM/.37"

Connecting Parts Metal Mounting Brackets — Metal mounting brackets, steel zinc plated. Ball Ø16MM · Part # MB16CHD
Part #	A	B	C	D	E	F	G
MB16CHD	60MM/2.36"	50MM/1.97"	45MM/1.77"	7MM/.28"	7MM/.28"	5MM/.20"	16MM/.63"

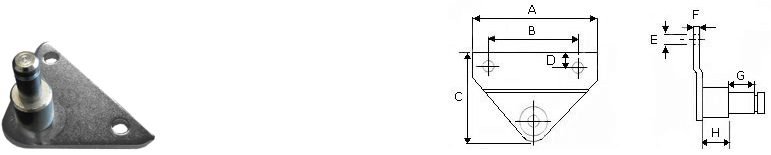

Metal mounting brackets, steel zinc plated. Pin Ø6MM part 5

Connecting Parts Metal Mounting Brackets — Metal mounting brackets, steel zinc plated. Pin Ø6MM · Part # MP6A
Part #	A	B	C	D	E	F	G	H
MP6A	28MM/1.10"	18MM/.71"	26MM/1.02"	5MM/.20"	6.3MM/.25"	3MM/.12"	6.3MM/.25"	4MM/.16"

Connecting Parts Metal Mounting Brackets — Metal mounting brackets, steel zinc plated. Pin Ø8MM · Part # MP8C
Part #	A	B	C	D	E	F	G	H
MP8C	69MM/2.70"	55MM/2.15"	50MM/1.97"	7MM/.28"	5MM/.20"	3MM/.12"	10.5MM/.41"	5MM/.20"

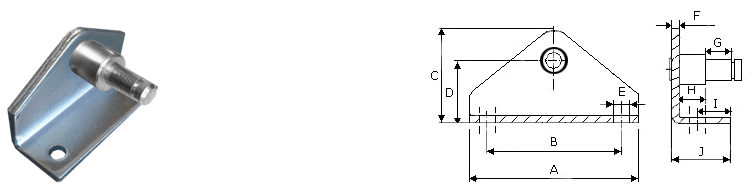

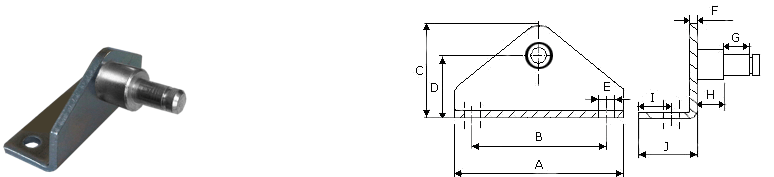

Metal mounting brackets, steel zinc plated. Pin Ø8MM part 6

Connecting Parts Metal Mounting Brackets — Part # MP8E
Part #	A	B	C	D	E	F	G	H	I	J
MP8E	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	6.2MM/.24"	3MM/.12"	10.5MM/.41"	13MM/.50"	6MM/.24"	20MM/.80"

Connecting Parts Metal Mounting Brackets — Part # MP8F
Part #	A	B	C	D	E	F	G	H	I	J
MP8F	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	6.2MM/.24"	3MM/.12"	10.5MM/.41"	13MM/.50"	6MM/.24"	20MM/.80"

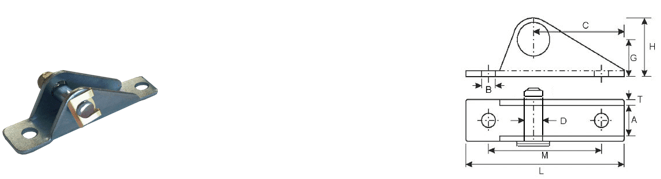

Mounting brackets bolt type Ø6MM bolt part 8

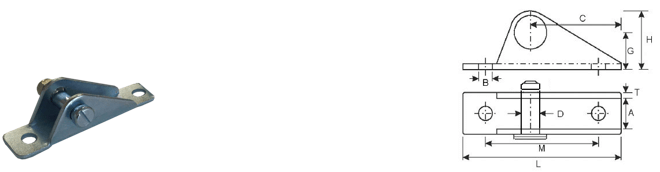

Connecting Parts Metal Mounting Brackets — Mounting brackets bolt type Ø6MM bolt · Part # MT6A
Part #	A	B	C	D	G	H	L	M	T
MT6A	12MM/.47"	4.5MM/.18"	27.5MM/1.08"	6MM/.24"	22MM/.87"	28MM/1.10"	55MM/2.17"	40MM/1.57"	1MM/.04"

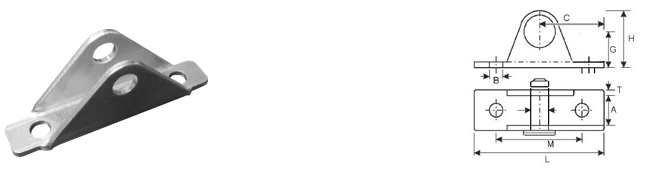

Connecting Parts Metal Mounting Brackets — Part # MT8B
Part #	A	B	C	D	G	H	L	M	T
MT8B	13MM/.51"	6.3MM/.25"	40MM/1.57"	8MM/.32"	16MM/.63"	25MM/.98"	70MM/2.76"	50MM/1.97"	2.5MM/.10"

Connecting Parts Metal Mounting Brackets — Part # MT8P
Part #	A	B	C	D	G	H	L	M	T
MT8P	13MM/.51"	6.3MM/.25"	40MM/1.57"	8MM/.32"	16MM/.63"	25MM/.98"	70MM/2.76"	50MM/1.97"	2.5MM/.10"

Connecting Parts Metal Mounting Brackets — Part # MT10B
Part #	A	B	C	D	G	H	L	M	T
MT10B	15MM/.59"	8MM/.32"	32MM/1.26"	10MM/.39"	25MM/.98"	34MM/1.34"	89MM/3.50"	63MM/2.50"	3MM/.12"

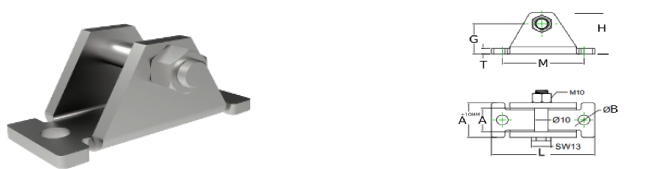

Connecting Parts Metal Mounting Brackets — Part # MT10HD
Part #	A	B	C	D	G	H	L	M	T
MT10HD	31MM/1.22"	10MM/.39"	38MM/1.50"	10MM/.39"	30MM/1.18"	40MM/1.57"	75MM/2.95"	60MM/2.36"	5MM/.20"

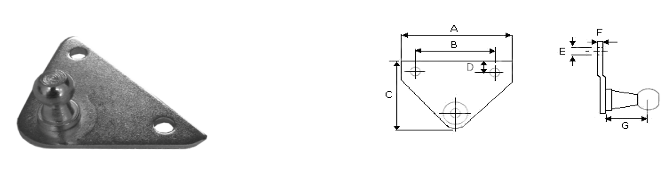

Stainless steel 316 mounting brackets ball Ø10MM - part MB10CN

Connecting Parts Metal Mounting Brackets — Stainless steel 316 mounting brackets ball Ø10MM · Part # MB10CN
Part #	A	B	C	D	E	F	G
MB10CN	68MM/2.68"	55MM/2.17"	48MM/1.90"	7MM/.28"	5MM/.20”	3MM/.12”	12MM/.50”

Stainless steel 316 mounting brackets ball Ø10MM - part MB10EN

Connecting Parts Metal Mounting Brackets — Part # MB10EN
Part #	A	B	C	D	E	F	G	H	I
MB10EN	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	5MM/.20"	3MM/.12"	13MM/.50"	6MM/.24"	20MM/.80"

Stainless steel 316 mounting brackets ball Ø10MM - part MB10FN

Connecting Parts Metal Mounting Brackets — Part # MB10FN
Part #	A	B	C	D	E	F	G	H	I
MB10FN	51MM/2.00"	38MM/1.50"	30MM/1.20"	20MM/.80"	5MM/.20"	3MM/.12"	13MM/.50"	6MM/.24"	20MM/.80"

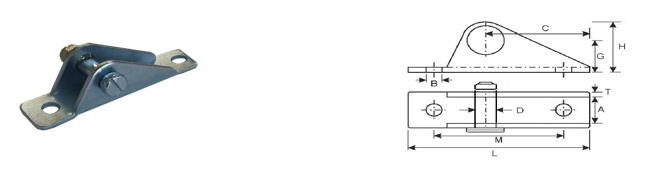

Stainless steel 316 mounting bracket with bolt and nylock nut - part MT8BN

Connecting Parts Metal Mounting Brackets — Stainless steel 316 mounting bracket with bolt and nylock nut · Part # MT8BN
Part #	A	B	C	D	G	H	L	M	T
MT8BN	13MM/.51"	6.3MM/.25"	40MM/1.57"	8MM/.32"	16MM/.63"	25MM/.98"	70MM/2.76"	50MM/1.97"	2.5MM/.10"

Other types on request, please contact us for more information or send us your drawing

Request a quote for Connecting Parts Metal Mounting Brackets

Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.

Request a quote Gas spring configurator +1 778 475-5611
