Products
Lockable Gas Springs
Select from the images below a diameter to view product categories
In this range
5 types
Elastic locking gas springs
2 models
Gemini Gas Spring Elastic Locking springs are ideal for locking the stroke at a determined position without making use of external locking mechanisms.
Rigid locking in extension - semi rigid in compression
2 models
Rigid locking in pull and semi-rigid in push direction, the locking force in pull direction remains rigid up to the mechanical properties of the spring, in push direction the springs remains rigid until a value of 3.6/5.8*FORCE exceeded.
Rigid in compression - semi rigid in extension.
1028-3
Lockable Gas Spring release system for unlocking the gas spring anywhere along the stroke length. Available in Lever, Bowden Cable or Hydraulic Cable Systems.
Rigid locking in extension and compression
2 models
Rigid locking in both directions, the locking force remains rigid up to the mechanical properties of the spring. Applications: Hospital beds, treatment tables etc.
Release systems
Lockable Gas Spring release system for unlocking the gas spring anywhere along the stroke length. Available in Lever, Bowden Cable or Hydraulic Cable Systems.
- Other locking types or release systems on request, please contact us for more information.
About Lockable Gas Springs
Lockable gas springs can be found in many applications to help lifting, balancing or lowering objects without using external air or hydraulic equipment.

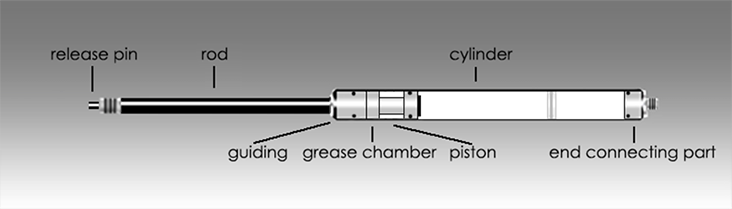

A gas spring consists of multiple seals, rod, piston and a cylinder filled with Nitrogen and a small amount of oil for lubrication. In many ways they work the same as compression spring with the only difference that the rod can be locked at any position of the useable stroke length.
The hollow rod contains a release pin, by pushing in this pin the piston valve opens and enables the rod to compress or extend.
The most commonly used lockable gas compression springs are available in 3 locking types, other locking features on request please contact us for possibilities.
The rod with piston moves in nitrogen only, once the valve is closed anywhere along the available stroke length the rod will be locked in its position. Depending on the amount of force that is being applied to the spring an increase or decrease of bouncing will take place.
• Rigid in pull - semi rigid in push direction:
With this type the cylinder is separated in 2 compartments. The rod with piston moves in an oil chamber and separating nitrogen with a floating piston. Because the piston moves in oil only the rod remains rigid locked in pull direction up to mechanical properties of the lockable gas compression spring. In push direction the lockable gas compression spring will remain rigid until the force exceeds the value of the floating piston. Locking force in push direction depends on diameter of the lockable gas compression spring. Ø10/23: 3.6*F1; Ø1028: 5.8*F1 ( gas spring force ).
• Rigid in pull - push direction:
With this type the locking force is rigid up to the mechanical properties of the lockable gas compression spring. A special separated piston and floating piston locks the rod anywhere along the available stroke length in a rigid position.
Gemini Lockable Gas Springs™ are available in diameters 10/23MM and 10/28MM, please contact us for other possible diameters.
Stroke length 10MM/0.39” up to 600MM/23.62” Force range 40N/9.00bs to 2600N/585Lbs depending on diameter and or type. Temperature range -35°C/-31°F to 90°C/194°F, -45°C/-49°F or +200°C/+392°F
Gemini Gas Springs™ are maintenance free and ready for use and can be mounted in any direction.
Request a quote for Lockable Gas Springs
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
