Stainless Steel Gas Springs 316L
Choose a rod and cylinder diameter to view available stainless steel gas spring models.
In this range
6 types
Start with the rod and cylinder diameter, then compare the available stroke and force ranges. Open a model to review its full dimensions, options and technical drawings.
Scroll horizontally to view all columns.
| Model | Rod diameter | Cylinder diameter | Stroke range | Force range |
|---|---|---|---|---|
| 0615-STSL | 6MM / 0.24" | 15MM / 0.59" | 10-210MM / 0.38" - 8.27" | 10-400N / 2.25-90Lbs |
| 0819-STSL | 8MM / 0.315" | 19MM / 0.75" | 20-300MM / 0.79"-11.81" | 30-700N / 6.75-158Lbs |
| 0823-STSL | 8MM / 0.315" | 23MM / 0.91" | 20-300MM / 0.79"-11.81" | 30-700N / 6.75-158Lbs |
| 1023-STSL | 10MM / 0.39" | 23MM / 0.91" | 20-800MM / 0.79"-31.50" | 30-1200N / 6.75-270Lbs |
| 1028-STSL | 10MM / 0.39" | 28MM / 1.10" | 20-800MM / 0.79"-31.50" | 30-1200N / 6.75-270Lbs |
| 1428-STSL | 14MM / 0.55" | 28MM / 1.10" | 20-800MM / 0.79"-31.50" | 100-2225N / 22.50-500Lbs |
Rod D1 Ø 6MM - Cylinder D2 Ø 15MM
0615-STSL
316L stainless steel gas spring 0615-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 8MM - Cylinder D2 Ø 19MM
0819-STSL
316L stainless steel gas spring 0819-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 8MM - Cylinder D2 Ø 23MM
0823-STSL
316L stainless steel gas spring 0823-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 10MM - Cylinder D2 Ø 23MM
1023-STSL
316L stainless steel gas spring 1023-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 10MM - Cylinder D2 Ø 28MM
1028-STSL
316L stainless steel gas spring 1028-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 14MM - Cylinder D2 Ø 28MM
1428-STSL
316L stainless steel gas spring 1428-STSL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
About Stainless Steel Gas Springs 316L
Stainless steel gas compression springs provide controlled assistance for lifting, lowering and balancing loads in applications that require greater corrosion resistance.

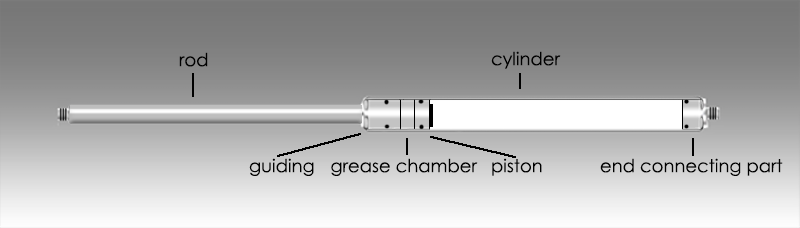

A typical spring contains a pressure cylinder, piston, piston rod, seals, nitrogen and a small amount of oil for lubrication and damping.
Extension speed, damping length and force progression can be specified for the application within the limits of the selected spring size.
Where end-of-stroke damping is required, rod-down mounting is generally recommended. Confirm the material grade, orientation and mounting geometry for the application.
Available 316L stainless steel sizes include 6/15 mm, 8/19 mm, 8/23 mm, 10/23 mm, 10/28 mm and 14/28 mm.
Request a quote for Stainless Steel Gas Springs 316L
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
