Oil Dampers
Choose a rod and cylinder diameter to view available oil damper models.
In this range
4 types
Start with the rod and cylinder diameter, then compare the available stroke and force ranges. Open a model to review its full dimensions, options and technical drawings.
Scroll horizontally to view all columns.
| Model | Rod diameter | Cylinder diameter | Stroke range | Damping force |
|---|---|---|---|---|
| 0619-OIL | 6MM / 0.24" | 19MM / 0.75" | 10-210MM / 0.39" - 8.27" | Max. 800N/180Lbs |
| 0823-OIL | 8MM / 0.315" | 23MM / 0.91" | 20-300MM / 0.79" - 11.81" | Max. 1800N/405Lbs |
| 1023-OIL | 10MM / 0.39" | 23MM / 0.91" | 20-800MM / 0.79" - 31.50" | Max. 1800N/405Lbs |
| 1028-OIL | 10MM / 0.39" | 28MM / 1.10" | 20-800MM / 0.79" - 31.50" | Max. 3000N/675Lbs |
Rod D1 Ø 6MM - Cylinder D2 Ø 19MM
0619-OIL
Oil damper 0619-OIL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 8MM - Cylinder D2 Ø 23MM
0823-OIL
Oil damper 0823-OIL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 10MM - Cylinder D2 Ø 23MM
1023-OIL
Oil damper 1023-OIL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
Rod D1 Ø 10MM - Cylinder D2 Ø 28MM
1028-OIL
Oil damper 1028-OIL specifications: dimensions, force range, stroke lengths, end fittings and available operating options.
About Oil Dampers
Oil dampers control the speed of a moving load without an external pneumatic or hydraulic supply.

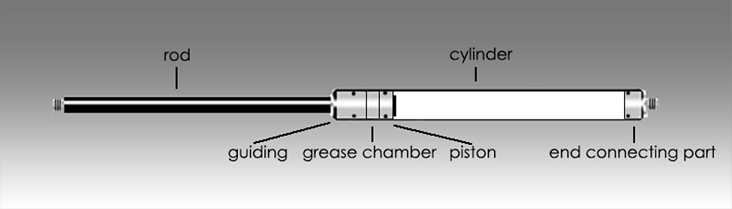

A typical damper contains a cylinder filled with oil, a piston, piston rod and seals. Orifice size and oil viscosity influence compression and extension speed.
Available configurations include damping in compression and damping in both directions. Confirm the required direction and speed when requesting a quote.
Available sizes include 6/19 mm, 8/23 mm, 10/23 mm and 10/28 mm. Other diameters may be available for specific applications.
Request a quote for Oil Dampers
Every Gemini gas spring is built to order in Vernon, BC. Send us your stroke, force and end-fitting requirements and we will come back with a quotation.
