Connecting Parts Clevis End Fittings For Gas Springs
Select from the images below a connecting part to view available types with dimensions
Clevis ends are equipped with folding clip bolts CF
Bolts with cotter pin, KL or SL retainers are to be ordered separately
Other types on request, please contact us for more information or send us your drawing
- Material
- Steel, stainless steel and Zamak
- Made in
- Vernon, BC, Canada
- Quality system
- ISO 9001:2015
Part of Connecting Parts
Dimensions and part numbers
| Part # | d2 | L2 | G | L1 | B / Ø d1 |
|---|---|---|---|---|---|
| C6 | M6 | 24MM/.95" | 12MM/.47" | 31MM/1.22" | 6MM/.24" |
| C6L | M6 | 36MM/1.42" | 24MM/.95" | 43MM/1.69" | 6MM/.24" |
| C8 | M8 | 32MM/1.26" | 16MM/.63" | 42MM/1.65" | 8MM/.32" |
| C8L | M8 | 48MM/1.89" | 32MM/1.26" | 58MM/2.28" | 8MM/.32" |
| C10 | M10 | 40MM/1.57" | 20MM/.79" | 52MM/2.05" | 10MM/.39" |
| C10L | M10 | 60MM/2.36" | 40MM/1.57" | 72MM/2.83" | 10MM/.39" |
| C14 | MF14x1.5 | 56MM/2.20" | 28MM/1.10" | 72MM/2.83" | 14MM/.55" |
| C14L | MF14x1.5 | 85MM/3.35" | 56MM/2.20" | 101MM/3.98" | 14MM/.55" |
- Clevis ends are equipped with folding clip bolts CF
- Bolts with cotter pin, KL or SL retainers are to be ordered separately
| Part # | d1 (h11) | L1 | L2 | d2 (H14) | d3 | Cotter pin |
|---|---|---|---|---|---|---|
| CB06B | 6MM | 18MM | 15.3MM | 1.6MM | 9MM | 1.6x10MM |
| CB08B | 8MM | 25MM | 19.7MM | 2.0MM | 12MM | 2.0x16MM |
| CB10B | 10MM | 28MM | 24.5MM | 3.2MM | 14MM | 3.2x20MM |
| CB14B | 14MM | 40MM | 32.5MM | 4.0MM | 19MM | 4.0x25MM |

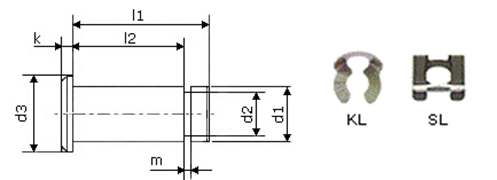

| Part # | d1 (h11) | d2 (h11) | L1 | L2 (H14) | d3 | k | m | Retrainer |
|---|---|---|---|---|---|---|---|---|
| CB06G | 6 | 5MM | 15MM | 12MM | 9MM | 1.5MM | 0.74MM | KL6/SL6 |
| CB08G | 8 | 6MM | 19.5MM | 16MM | 12MM | 2.0MM | 0.94MM | KL8/SL8 |
| CB10G | 10 | 8MM | 24.5MM | 20MM | 14MM | 3.0MM | 1.05MM | KL10/SL10 |
| CB14G | 14 | 10MM | 33.0MM | 27MM | 19MM | 3.0MM | 1.25MM | KL14/SL14 |
| Part # | d2 | L2 | G | L1 | B / Ø d1 |
|---|---|---|---|---|---|
| C6N | M6 | 24MM/.95" | 12MM/.47" | 31MM/1.22" | 6MM/.24" |
| C8N | M8 | 32MM/1.26" | 16MM/.63" | 42MM/1.65" | 8MM/.32" |
| C10N | M10 | 40MM/1.57" | 20MM/.79" | 52MM/2.05" | 10MM/.39" |
| C14N | MF14x1.5 | 56MM/2.20" | 28MM/1.10" | 72MM/2.83" | 14MM/.55" |
Other types on request, please contact us for more information or send us your drawing
